How does Scuba perform data sampling?
In order to facilitate analysis at the speed of thought Scuba supports the running of both sampled and unsampled queries. Sampled queries run faster because they include a representative fraction of the data. Unsampled queries run more slowly because they include all of the data.
Scuba's sampling strategy is taken from Flajolet and Le Chesnay's 1990 paper "On Adaptive Sampling" and the sampling scheme kicks in when a user 1) runs a sampled query 2) runs a count unique aggregation on a non-actor column, or 3) runs a count unique aggregation on an actor with a time offset or split-by. The sampling rate can be configured so if you have any questions, please reach out to email@example.com.
Like most modern analytics platforms, Scuba is architected using a scale-out clustered approach. A cluster has multiple nodes (machines), and the number scales to match the demands of the data and concurrent users. Each machine has one or more jobs within the overall solution. The import nodes ingest event data from event logs, traces, and so on. The data nodes manage efficiently storing and scanning the event data. The string nodes compress and deduplicate all the strings in the event data, handling storage and lookup for query results so that all data operations can take place efficiently using compact integers. For smaller clusters, nodes can take on several of these roles as needed. These machines can be bare metal, virtualized, or securely running inside of a public cloud service.

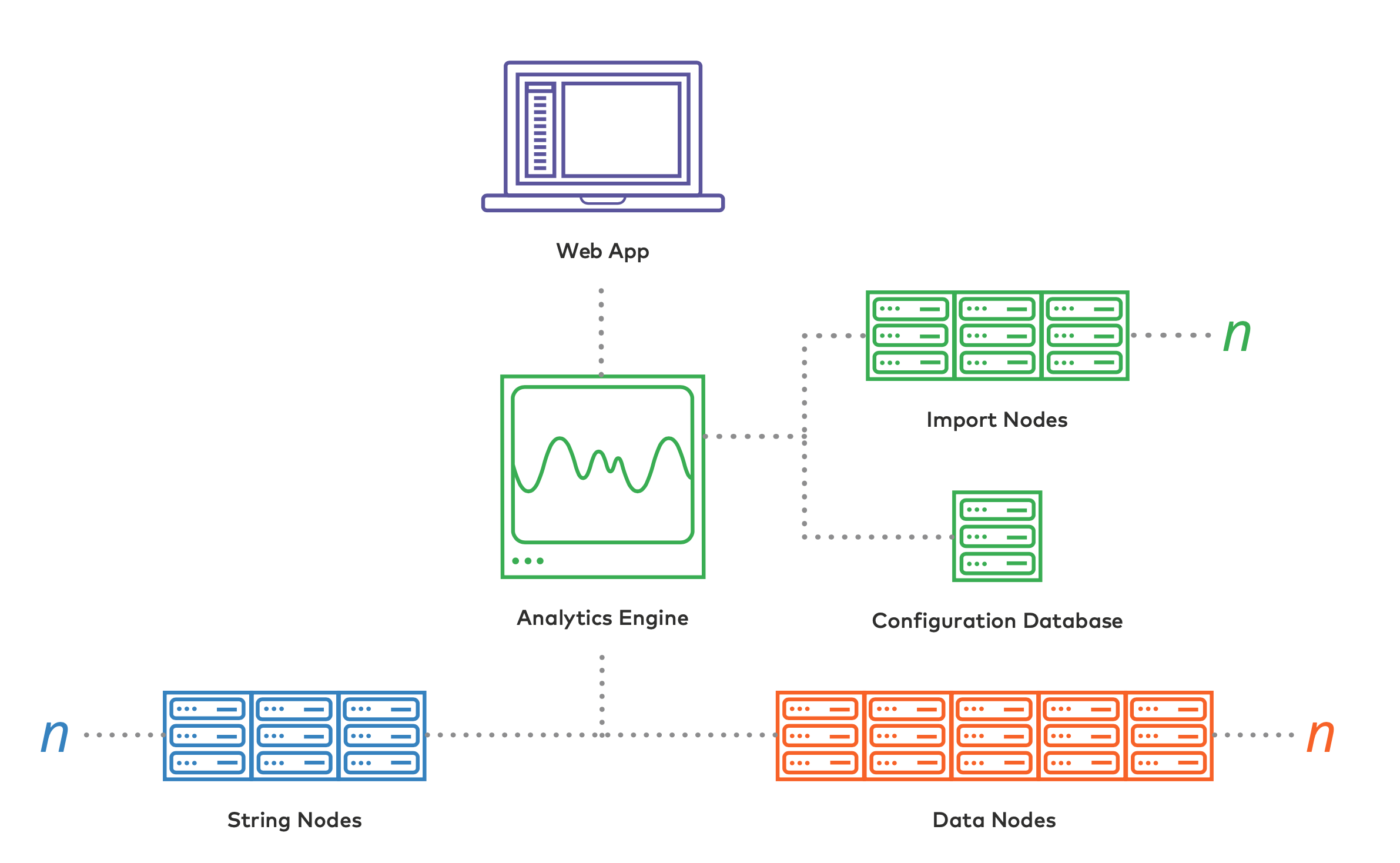

Tiers and Components of the Scuba Architecture
Consistent organization and representative populations
One mechanism to support accurate behavioral sampling is to make sure all the data for an actor is stored together on the same node. And that the storage and placement of individual actors is fair and even for all actors in the population. We do that mathematically by using a hash with appropriate properties, followed by selecting one of many shards (containers) to hold that particular actor. All events associated with that actor is held within the same shard. That shard is managed by one node at a time, so all the events for a single actor are managed efficiently on a single machine. Because the actors are evenly distributed among shards, every shard contains a representative slice of the overall population.
Sampling actors to get entire time stream
We can take advantage of the fact that a single shard holds a representative cross-section of the population when it comes to sampling. When we sample, each data node processes a single shard and scans the requested time range for all the actors in that shard. Because even a single shard may hold more actors than necessary for a statistically valid sample, we can sample with progressively larger subsets of the shard until we have sufficient confidence in the sampled result.
Scanning the sample shard is usually very quick, because the common time ranges tend to be cached in memory. Even when the data is scanned directly from disk, the process usually takes just a few seconds. We only scan the columns required for that particular query, and those columns are stored very efficiently and processed with a highly optimized C++ backend. The end result is quick, accurate sampling for behavioral analytics and the ability to interactively explore vast amounts of data.
Parallelized queries, sane results
You might be wondering how Scuba knows that the sample from a single shard is actually representative of the population. That’s where the scale-out nature of Scuba comes in. The query isn’t just run on a single shard. It’s run on a shard for each data node of the cluster in parallel. The algorithm balances actors evenly across all nodes and shards, so each node should complete the query on its shard at roughly the same time.
The results from each data node are merged together and compared. If the statistical profile of the actors in each shard is roughly the same then the sampling is held as valid. The results are scaled up based on the size of the sample relative to the overall population, and the results returned to the user. Any strings in the results are translated on the string servers at this time, generally eliminating string operations during the query processing.
The product is a fast, accurately sampled result that reflects behavioral information across billions of events in seconds.
Knowing when not to sample
Of course, sampling isn’t always appropriate. Certain data isn’t evenly distributed among the shards. Some events are very rare and unlikely to show up in a sampled result. Sometimes you’re looking for a tiny specific set of events but aren’t sure when they occurred. Sometimes the selection filters leave too few events to sample accurately. Scuba detects situations where sampling isn’t appropriate and returns warnings when necessary.
You can then either reformulate your query, or choose to disable sampling and compute the query across the full set of data.
In general, unsampled queries are needed only when exploring a very small or irregular data set. For example, when the scope of the query is so narrow that it covers fewer than a few thousand actors or events.
In all of these cases, Scuba recommends that the query be rerun unsampled. But even when running a query on the full set of events, Scuba returns results in seconds. The entire system was designed around the proposition that scanning billions of events is the common case and needs to complete quickly. And we deliver.
Conclusion and more information
Scuba is a purpose-built solution for behavioral analytics of event data at scale. The solution consists of a highly scalable cluster which is combined with an intuitive visual interface to interactively explore trillions of events in seconds. Part of how that’s possible is the architecture of the solution, and part is the integral role of sampling.
We’ve explained how sampling for event data needs to be handled correctly. And that sampling got a bad rap because in the past big data solutions didn’t always do the right thing. Scuba handles sampling for behavioral analytics correctly, and uses this powerful technique to give you the freedom to rapidly explore your data without fear of asking the wrong questions. This lets you zero in on the right questions to ask and significantly reduces time to discovery.
