Set up Azure Managed Identities for Scuba

The purpose of this document is to provide some general knowledge about Managed Identities, information about where and how they can be used in Scuba, and what a Scuba customer should setup to allow us to connect through Managed Identities authentication.

General background

Managed Identities is a way to authenticate access to the Azure Cloud without using passwords and vaults.

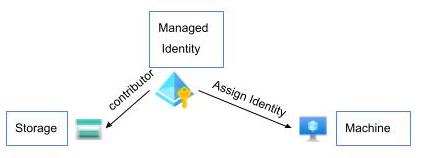

Let’s say you need access from a Machine to a Storage Account or Blob/Container. In that case you’ll create a Managed Identity and provide it to both parties. Our Storage will be the contributor, while the Machine will know it as an assigned identity.

The identity creation and assignment is done through the Azure portal.

For more information see official Microsoft documentation: https://docs.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/qs-configure-cli-windows-vm

Managed Identities in Scuba

Managed Identities authentication can currently be used in two scenarios:

  1. Import - reading/downloading data from Azure

  2. GDPR purge request & receipts - writing/uploading data to Azure

In our system there are several machines that require the Identity to be assigned to them:

  • config

  • data (all machines)

  • import (all machines)

  • string (all machines)

Setup

Creating the Managed Identity

  1. Go to Azure portal \ Managed Identities.

  2. Press + Create in the toolbar.

  3. Fill in the form and press Review + create.

  4. Press create at the bottom of the new form.

  5. Go to Home \ Managed Identities \ <the identity you’ve created>.

  6. Copy the Client ID and send it to your Scuba representative.

Set role assignments to your resource

  1. Go to the relevant resource in the Azure Portal, such as Storage account (for import).

  2. On the left panel go to Access Control (IAM).

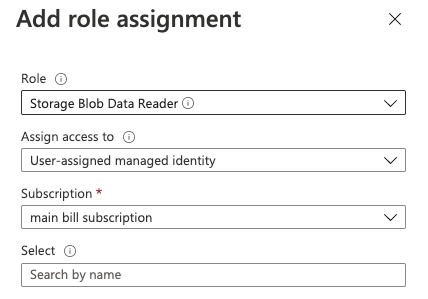

  3. Press the + Add button, and select Add role assignment.

  4. Fill in the form as follow. you’ll need to do it twice for 2 different roles:

    1. Storage Blob Data Contributor

    2. Storage Blob Data Reader

  5. Press Save.

Assign the Identity to the accessing machines

  1. Go to the relevant machine in the Azure portal.

  2. On the left panel go to Identity.

  3. Go to the User assigned tab.

  4. Press the + Add button.

  5. Fill the form on the right and select the identity you’ve created.

  6. Press the Add button at the bottom.

What’s next?

Don’t forget to send us the Managed Identity Client ID (see step 6 under "Creating a Managed Identity"). We’ll take it from there!
